Ultra Small RFID Patch Antenna. No Radome. 902-928 MHz for FCC RFID. CUS-01138

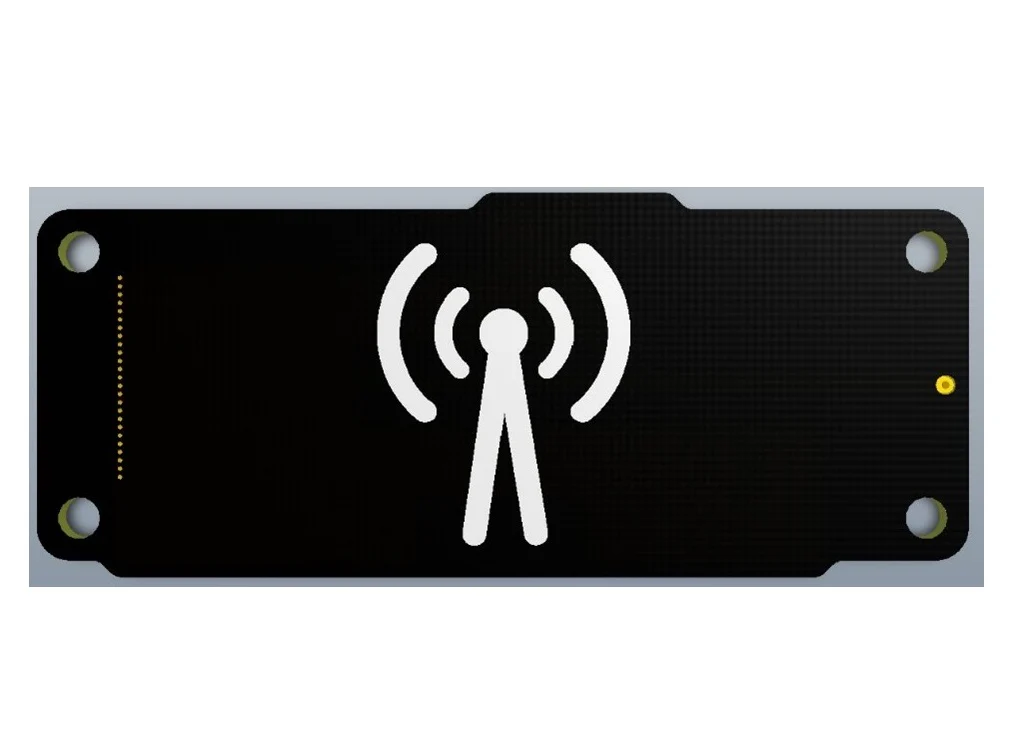

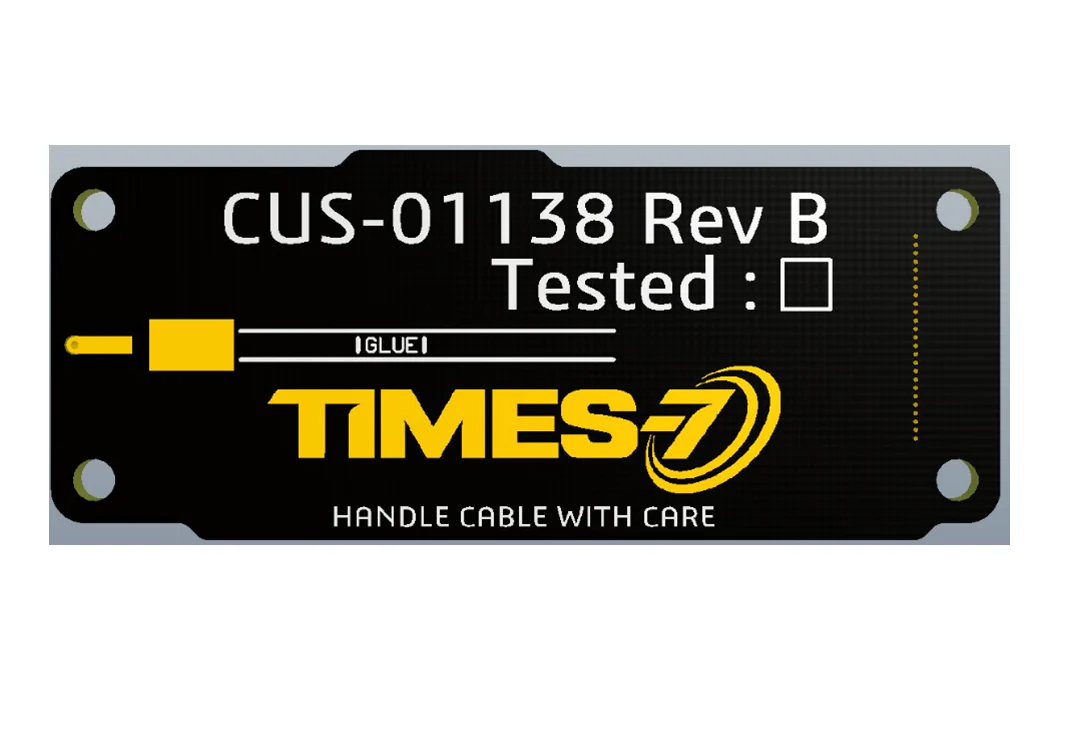

The CUS-01138 is ultra-small, UHF (902-928 MHz) RFID Near-Field patch antenna for close proximity reads, constructed on a double-sided printed circuit board with a 23 inch long RG316 cable and SMA Male connector. The antenna is a linear polarized 1/4 wave planar patch antenna with the radiating surface and the ground plane made from conductive copper whereas the dielectric substrate used is FR-4 (fiber glass epoxy).
The radiating patch is fed by a microstrip line which is excited by the RG-316 cable. The patch antenna is linearly polarized along the long edge of the PCB. The electrostatic discharge will be grounded through the coaxial cables ground.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The CUS-01138 is ultra-small, UHF (902-928 MHz) RFID Near-Field patch antenna for close proximity reads, constructed on a double-sided printed circuit board with a 23 inch long RG316 cable and SMA Male connector. The antenna is a linear polarized 1/4 wave planar patch antenna with the radiating surface and the ground plane made from conductive copper whereas the dielectric substrate used is FR-4 (fiber glass epoxy).
The radiating patch is fed by a microstrip line which is excited by the RG-316 cable. The patch antenna is linearly polarized along the long edge of the PCB. The electrostatic discharge will be grounded through the coaxial cables ground.
